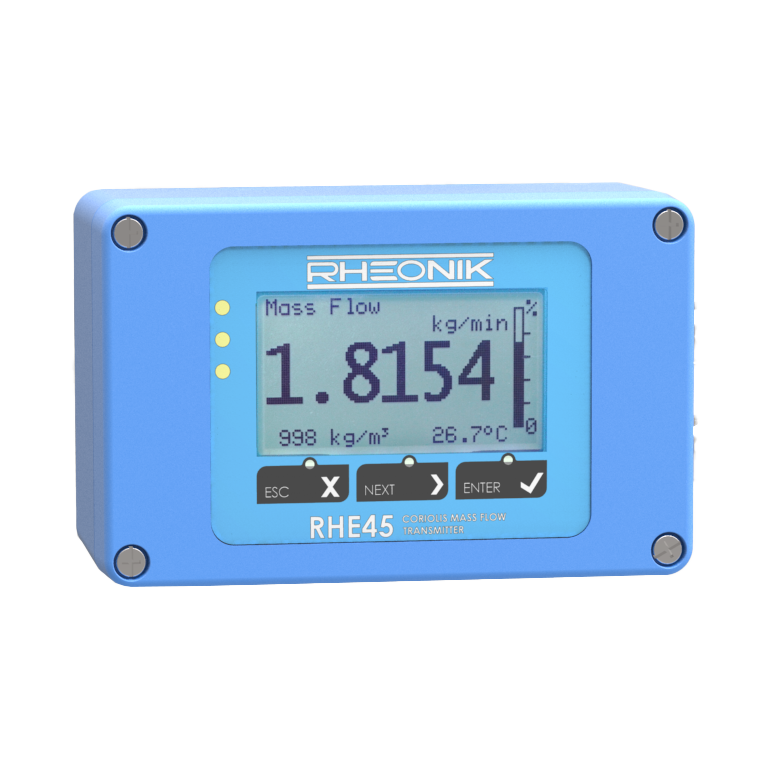

RHE 45

TRANSMITTER

The RHE45 is an extremely compact Coriolis transmitter. The Rheonik AnyInterfaceCommitment provides a wide variety of communication options for seamless connection to control or SCADA systems. Options include Ethernet, Modbus, ProfiNet, EtherCat, PowerLink, Profibus, CAN and others.



  • Measures Mass Flow, Volumetric Flow, Density and Temperature
  • Outputs 2 x Analog, 2 x Frequency/Pulse, 2 x Digital Status
  • Inputs 2 x Digital
  • PC USB / RHECom, RS 485 / Modbus RTU, Modbus TCP, Ethernet IP, Profinet, EtherCAT, PowerLink, Profibus DP, DeviceNet and CANopen

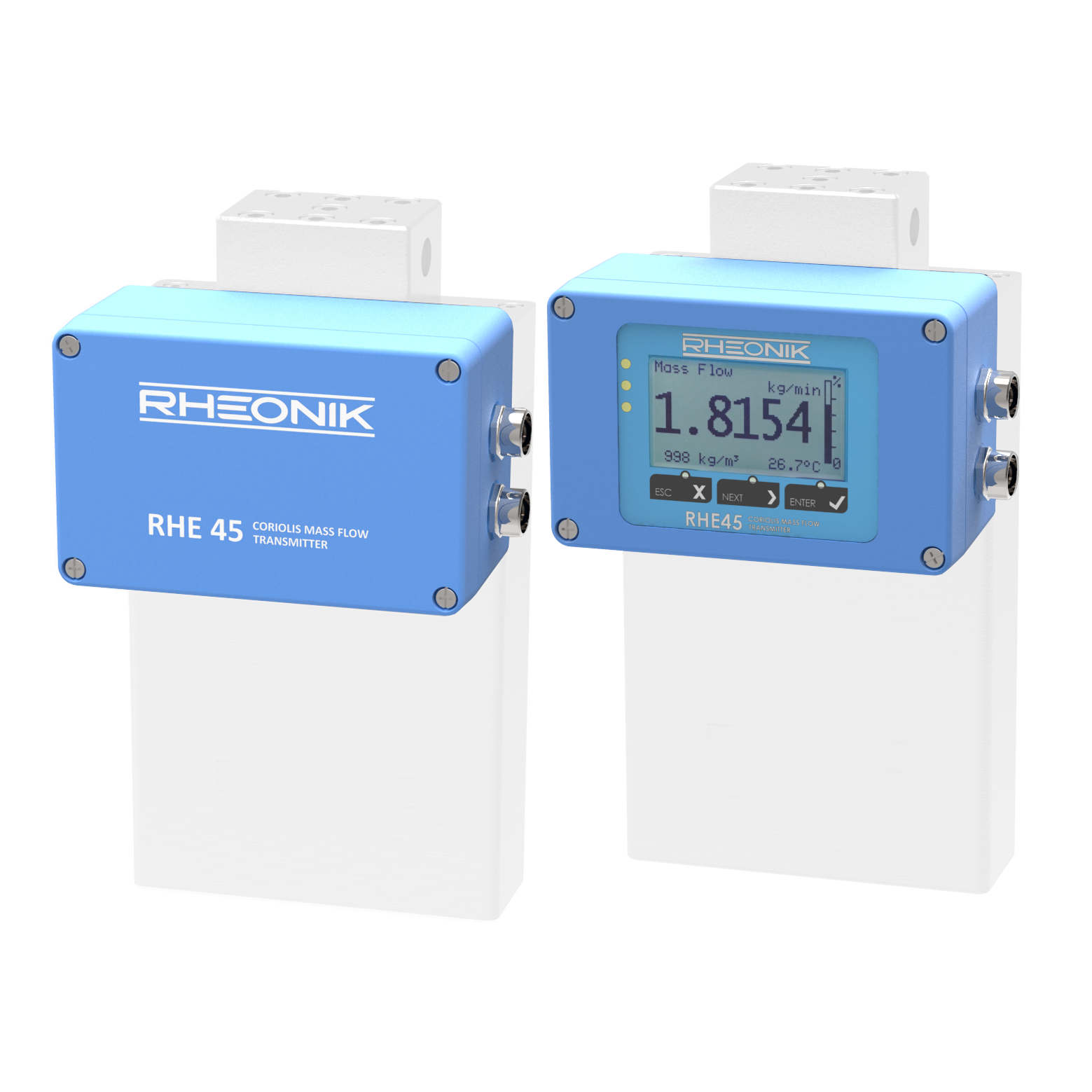

  • Optional Backlit Color LCD
  • Installation in Hazardous Area
  • Rheonik Assurance Factor®

CONFIGURE

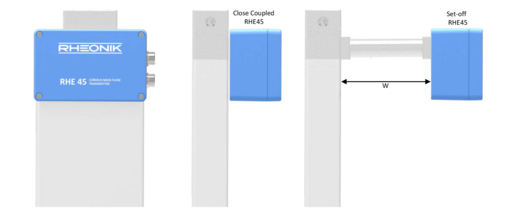

RHE 45 Dimensions

RHE 45 enclosure size: 125 x 80 x 57 mm (4.92 x 3.15 x 2.24 in)

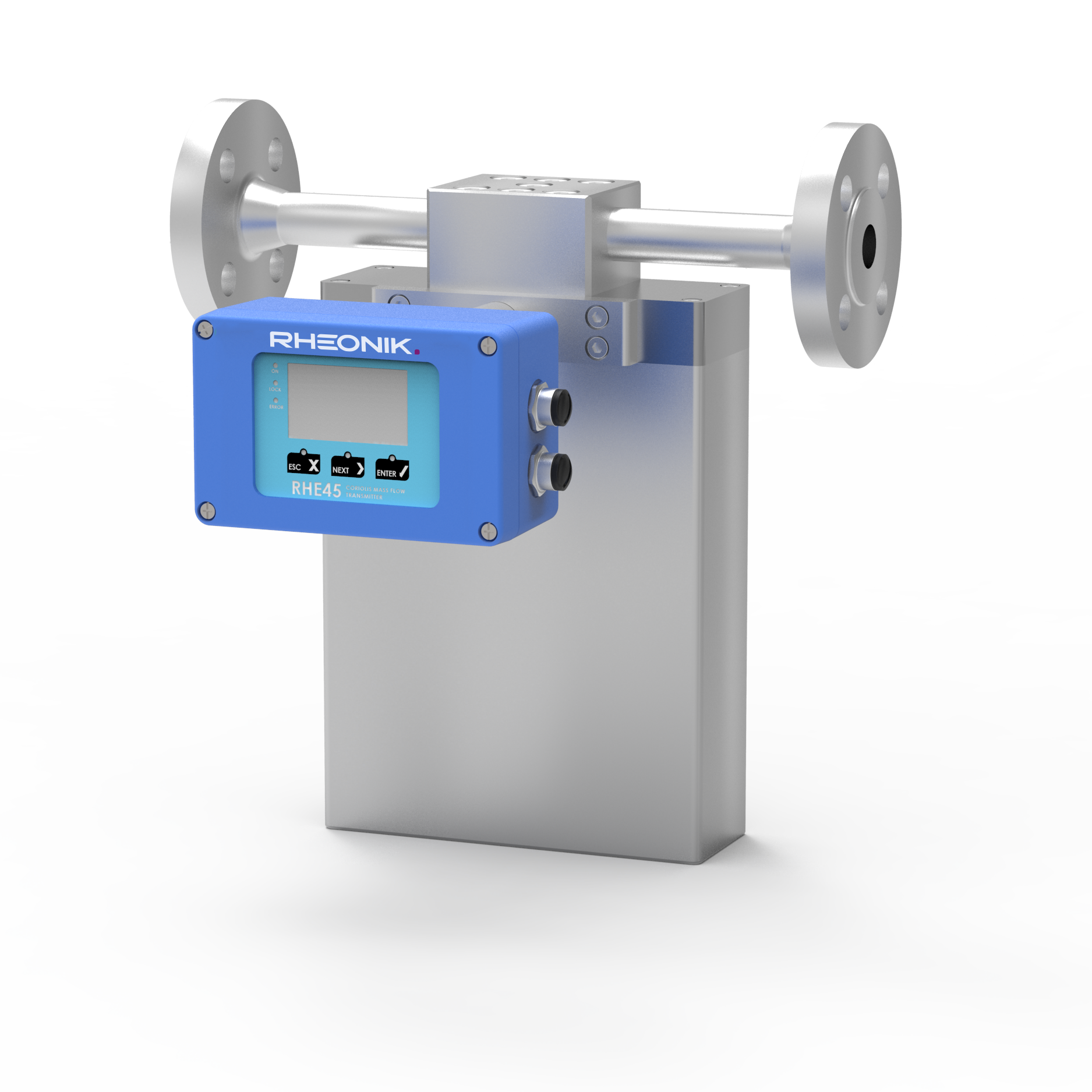

For RHM 015 to RHM 20 sensors, RHE45 transmitters are mounted either close coupled to or set-off from the sensor body depending upon temperature range selected.



For RHM 30 to RHM 160 sensors, RHE45 is always installed set-off from the sensor body.



W

mm

W

in

RHM015L to RHM04L Temperature  Range N1, NA

2

0.08

RHM015L to RHM04L all other Temperature  Ranges

100

3.94

RHM06L to RHM20L Temperature  Range N1, NA

0

0

RHM06L to RHM20L all other Temperature  Ranges

150

5.91

RHM30L to RHM160 all Temperature  Ranges

150

5.91
