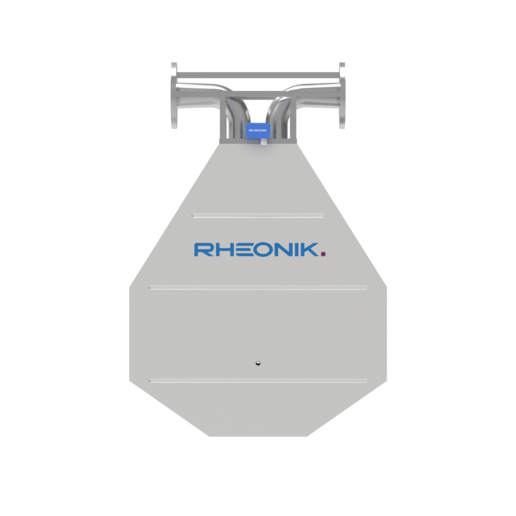

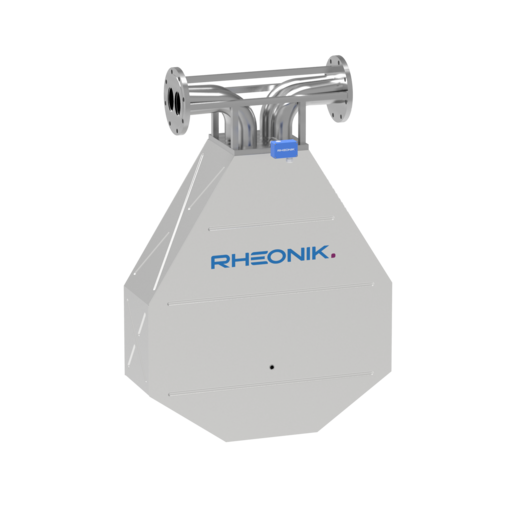

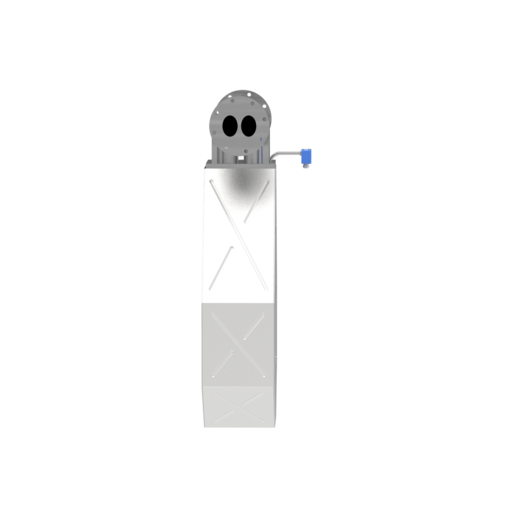

RHM 100

FLOW SENSOR

The RHM 100 is a high throughput Coriolis mass flow meter designed for plant balance and loading/unloading applications with trucks, railcars, barges, tankers and pipelines.

  • Range: 120 kg/min up to 12000 kg/min
  • Pressure: up to 66 bar (957 psi)
  • Temperature: -196°C (-321°F) up to +210°C (410°F)
  • Accuracy: 0.1 % of rate
  • Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Alloy C22 – 2.4602
  • Process Connection: 8" up to 8"
CONFIGURE
CATEGORY Large Size Sensors, Bunkering, Oil Measurement

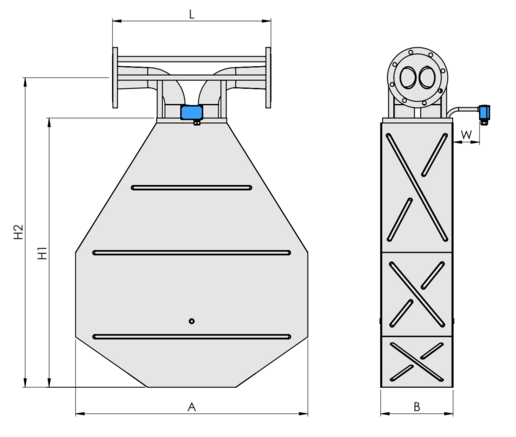

Face to Face dimension

Sealless design with flange connections
parallel / dual path

Process Connection

Face to Face (L)

ANSI 8" 150# RF/SF

900 mm / 35.43 in

ANSI 8" 300# RF/SF

900 mm / 35.43 in

ANSI 8" 600# RF/SF

900 mm / 35.43 in

ANSI 8" 1500# RTJ

900 mm / 35.43 in

ANSI 8" 2500# RTJ

900 mm / 35.43 in

DIN DN200/PN16 Form B1

900 mm / 35.43 in

DIN DN200/PN40 Form B1

900 mm / 35.43 in

DIN DN200/PN100 Form B2

900 mm / 35.43 in



Dimension

mm / in

A

1320 mm / 51.97 in

B

403 mm / 15.87 in

H1

1528 mm / 60.16 in

H2

1778 mm / 69.21 in

W

150 mm / 5.91 in


Common Dimensions for all Construction Types

  • Standard blue aluminum terminal box, size = 125 x 80 x 57 mm (4.92 x 3.15 x 2.24 in)

  • Terminal boxes are supplied with an M20 x 1.5 cable entry and a polyamide compression cable gland fitting (for cable diameters 7 - 14 mm / 0.28 - 0.56 in). M25 x 1.5, 1⁄2” NPT, 3⁄4” NPT cable entries (without gland) are optionally available and must be ordered separately

  • Optionally available: SS 316 box, size = 100 x 100 x 61 mm (3.94 x 3.94 x 2.40 in) – only with remote transmitter



For more information and dimensions see datasheet under downloads.
