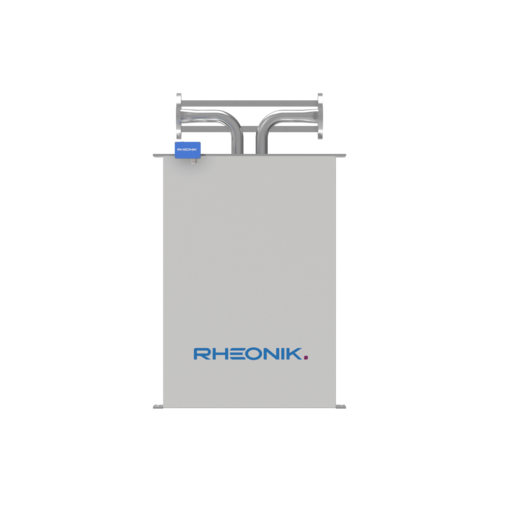

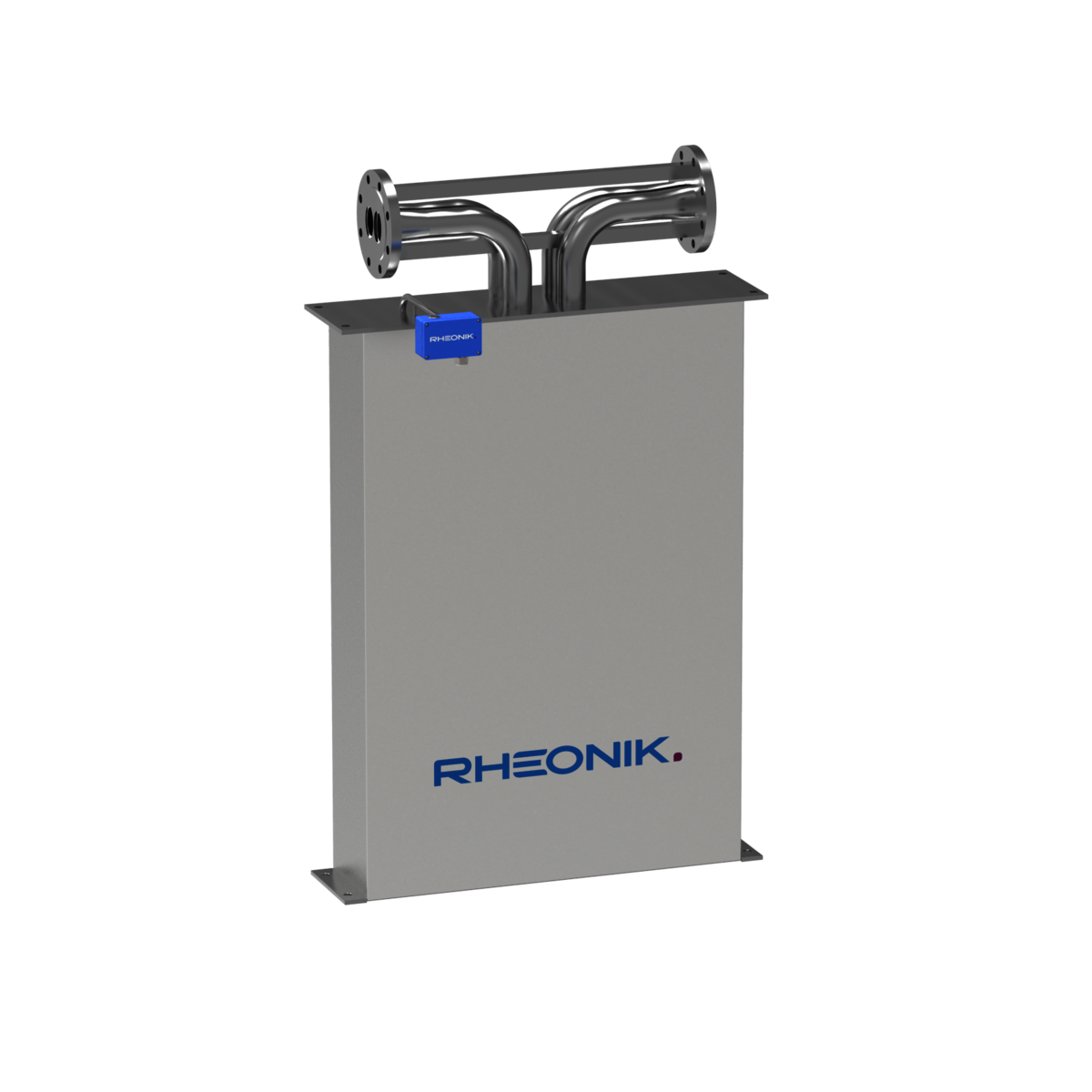

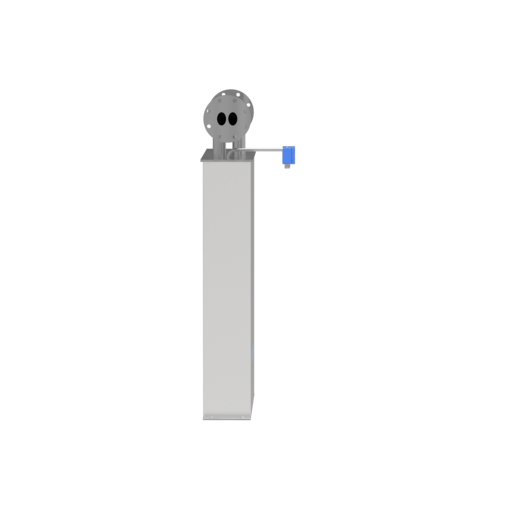

RHM 60

FLOW SENSOR

The RHM 60 is a robust sensor designed for 4″ line sizes. The availablity of a variety of wetted materials and wide pressure/temperature ratings allow use in applications throughout all industries.

  • Range: 30 kg/min up to 3000 kg/min
  • Pressure: up to 430 bar (6236 psi)
  • Temperature: -196°C (-321°F) up to +350°C (662°F)
  • Accuracy: 0.1 % of rate
  • Materials: SS 316L / SS 316Ti, Super Duplex – 1.4410, Alloy C22 – 2.4602
  • Process Connection: 4" up to 4"
CONFIGURE
CATEGORY Large Size Sensors, Bunkering, Oil Measurement

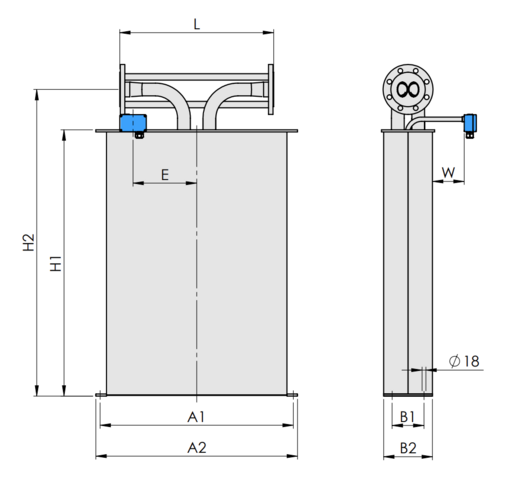

Face to Face dimension

Sealless design with flange connections
parallel / dual path

Process Connection

Face to Face (L)

Flange ANSI 4" 150# RF/SF

725 mm / 28.54 in

Flange ANSI 4" 300# RF/SF

725 mm / 28.54 in

Flange ANSI 4" 600# RF/SF

725 mm / 28.54 in

Flange ANSI 4" 900# RTJ

725 mm / 28.54 in

Flange ANSI 4" 1500# RTJ

725 mm / 28.54 in

Flange ANSI 4" 2500# RTJ

725 mm / 28.54 in

Flange DIN DN100/PN40 Form B1

725 mm / 28.54 in

Flange DIN DN100/PN100 Form B2

725 mm / 28.54 in



Dimension

mm / in

A1

910 mm / 35.83 in

A2

950 mm / 37.40 in

B1

150 mm / 5.91 in

B2

230 mm / 9.06 in

H1

1253 mm / 49.33 in

H2

1443 mm / 56.81 in

E

300 mm / 11.81 in

W

150 mm / 5.91 in


Common Dimensions for all Construction Types

  • Standard blue aluminum terminal box, size = 125 x 80 x 57 mm (4.92 x 3.15 x 2.24 in)

  • Terminal boxes are supplied with an M20 x 1.5 cable entry and a polyamide compression cable gland fitting (for cable diameters 7 - 14 mm / 0.28 - 0.56 in). M25 x 1.5, 1⁄2” NPT, 3⁄4” NPT cable entries (without gland) are optionally available and must be ordered separately

  • Optionally available: SS 316 box, size = 100 x 100 x 61 mm (3.94 x 3.94 x 2.40 in) – only with remote transmitter



For more information and dimensions see datasheet under downloads.
