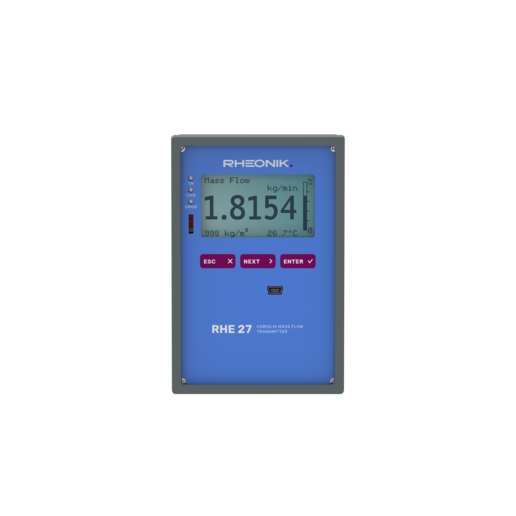

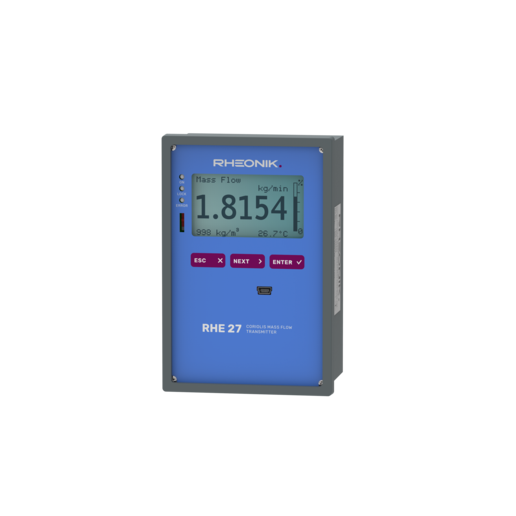

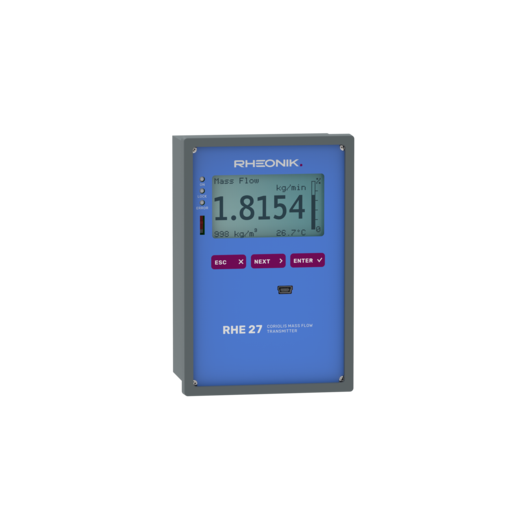

RHE 27
Panel Mount
The RHE27 is an advanced function transmitter designed for rack or panel mounting in an indoor environment. Features such as API Standard Volume correction and Net Oil calculation are available.
- Measures Mass Flow, Volumetric Flow, Density and Temperature
- Outputs 2 x Analog, 2 x Frequency/Pulse, 2 x Digital Status,´
- Inputs 2 x Digital, 1 x Analog
- PC USB for RHECom, RS 485 for Modbus RTU, HART over Analog
- Optional Backlit Color LCD
- ATEX/IEC Ex, CSA approved
- Rheonik Assurance Factor®
General Specifications
Enclosure Material | IEC61554 panel mount housing, PPE/PS-G20. Optional lockable front cover available |
Enclosure Rating | IP20 (front IP54 with optional lockable cover) |
Ambient Temperature: | -20°C to +60°C (-4°F to +140°F) |
Dimensions: | 96 x 144 x 61/75 mm (3.78 x 5.67 x 2.4/2.95 in) |
Display: | Backlit color LCD. Screen changes color to indicate warning or error |
Weight: | 0.55 kg (1.2 lb) |
Operation: | 3 x front panel operator buttons for all menu navigation and settings |
Sensor Connection: | Pluggable terminal strip. Cable available in lengths up to 100m for connection to remote sensor |
Analog Outputs: | Up to 2 x 4-20mA outputs, active / passive, compl. to NAMUR NE-43 Uncertainty of the analog output +/- 0.1% of reading, +/- 10µA |
Digital Outputs: | Up to 2 x configurable status outputs (IEC60946) |
Pulse/Freq/Status Outputs | Up to 2 x configurable pulse/frequency/status outputs (IEC60946), max. 10 kHz |
Digital Inputs: | Up to 2 x configurable control inputs (IEC60946) |
Analog Input (optional): | 1 x 4 - 20 mA analog input (active) for two-wire external sensor |
Power Supply | 100–240 VAC (48 to 62 Hz), 5 W and/or 12–24 VDC ±10%, 4 W |
Digital Data Communications: | Modbus RTU (RS485) |
Hazardous Area Approvals | ATEX / IECEx and cCSAus: RHE 27 in ordinary areas, RHM in all zones (see datasheet) Others available on request |
Sensor and transmitter must have matching approvals (see datasheet).
